Coolant System PA 230/400 Volt

259,00

Coolant System SA-150

SKU: N/A Category:

Description

Complete cooling system for smaller machine tools including coolant

Cooling-lubricating system type SA mounted on a drilling machine

Cooling-lubricating system (here type SA) mounted on a drilling machine

This complete system is intended for the supply of cooling liquid to larger, semi-automatic and fully automatic band saws, as well as for smaller lathes and milling machines, surface grinders, automatic drilling machines, thread cutting machines etc.

The PA-35 is designed for industrial use and is characterized by its robustness and long service life. It is operated with three-phase current (alternatively single-phase operation in the PA-35M version) and meets the requirements of IP 54.

The flow rate of the coolant can be continuously adjusted using the supplied valve.

Specifications

  • Pump: SAP SA-150 (90 watts)
  • Operating voltage: either 230 or 400 volts
  • Regulation of coolant supply: 0 – 100% (approx. 0 – 34 l/ min. at 1 m delivery height)
  • Dimensions coolant reservoir: 360 * 270 * 200 mm (L*W*H)
  • Contents of coolant reservoir: approx. 20 l
  • Material coolant reservoir: plastic (PP)

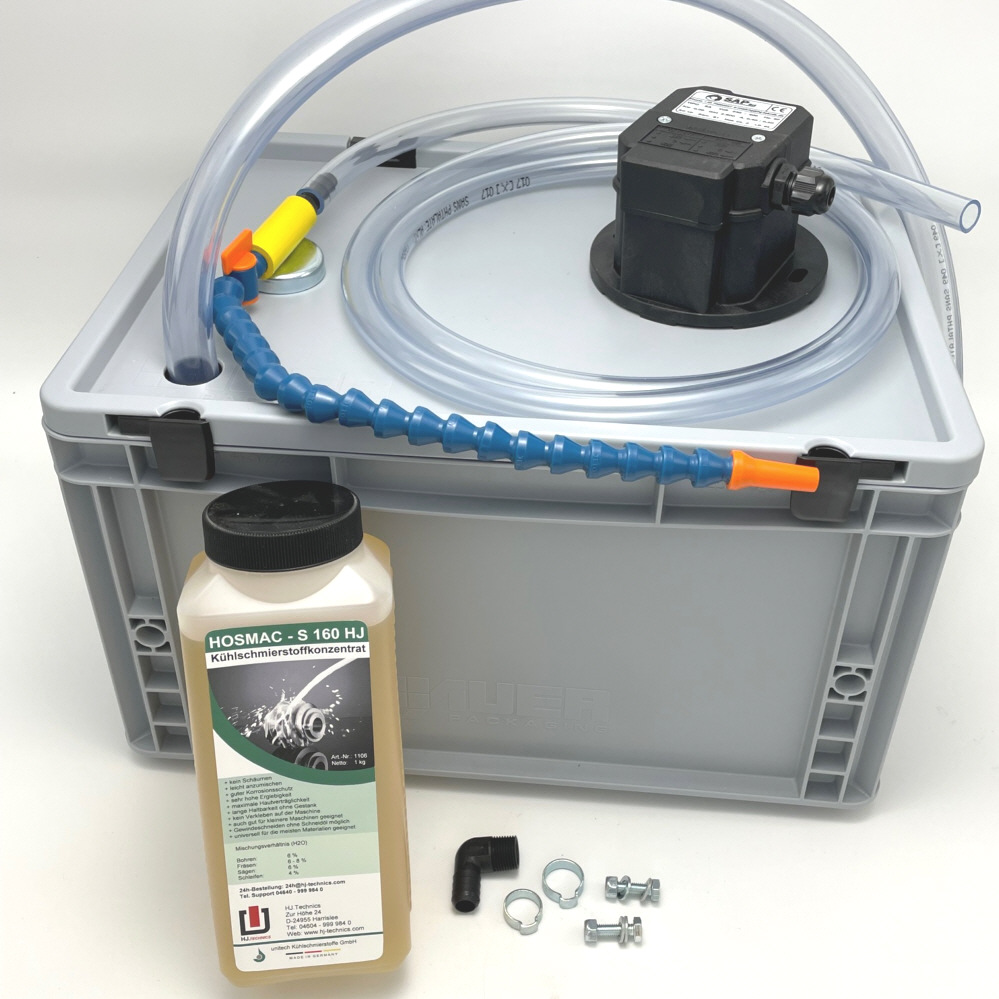

Scope of delivery

  • coolant pump
  • Tank for coolant (approx. 20 liters)
  • Flex hose (350 mm long) with nozzle, magnetic base and valve
  • Clear PVC hose (supply drilling milk) 2 m (16/12 mm)
  • Clear PVC hose (return) 1 m (24/19 mm)
  • Screws, clamps, hose fittings
  • 1 liter of coolant concentrate, water-miscible, sufficient for up to 25 liters of coolant,

Notes & additional information

  • The PA-35 pump is resistant to liquids containing particles (e.g. contaminated water) and all chemical compounds typically used in cooling lubricants.
  • The pump can be throttled up to 80% on the pressure side, which enables the flow rate to be optimally adjusted.
  • The pump inlet port is compatible with Quick-Fit couplings.
  • We can manufacture the pump type PA-35 for all mains voltages on customer request.

Additional information

Voltage

230 V, 400 V
